- UWP시리즈는 최대 16개의 무선 마이크로폰을 동시에 작동 시킬 수 있다.
- 휴대용 마이크로폰과 튜너 모듈로 구성.
-
PA 시스템에서 사용하기에 적합.
- 휴대용 마이크로폰에는 마이크로폰 홀더와 스쿠루 어댑터가 함께 제공.

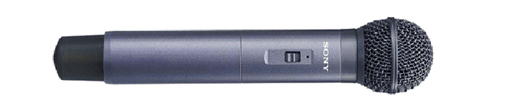

[UTX-H1 사양]
- Oscillator :
Crystal-controlled PLL synthesizer
- Type of emission : F3E
- Carrier
frequencies
* Receiving frequencies : 740.125MHz~751.875MHz
- RF power
output : 10 mW or 5 mW (selectable)
- Antenna : 1/4 λwave length wire
(internal)
- Pilot tone signal : 32 kHz
- Frequency response : 100 Hz to
18 kHz (typical)
- Reference deviation : ±5kHz (-94 dB SPL, 1kHz input)
-
Signal-to-noise ratio
* 60 dB or more (±5kHz deviation at 1 kHz
modulation, A-weighted)
- Microphone capsule : Dynamic capsule
(uni-directional)
- Audio attenuator : 0 to 21 dB (in 3 dB steps)
- Max.
input level : 151 dB SPL (at 21 dB attenuator level)
- Indicators
* LCD
: Operating channel number/frequency, attenuator level,
RF-output level (High/Low), audio input status, RF-output
status,
transmitte battery status, and accumulated operating
time
* LED : Power status
- Power requirements : DC 3.0 V (two AA-size
alkaline (LR6) batteries)
- Battery life : Approx. 6 hours with Sony AA-size
alkaline (LR6) batterie at
25℃(77℉) at 10mW output
-
Dimensions : ф52 x 240 mm (ф2 1/8 x 9 1/2 inches)
- Mass : Apporx. 300g (10.6
oz) including batteies
- Supplied accessories : Microphone helder (x 1),
screw adaptor (x 1)
[URX-M1 사양]
- Oscillator :
Crystal-controlled PLL synthesizer
- Type of emission : Space diversity
-
Receiving frequencies : 740.125MHz~751.875MHz
- RF Power Output : 10mW or
5mW
- Antenna : 1/4 λwave length wire
- Pilot tone signal : 32 kHz
- RF
squlch level : 25 dBμ
- Frequency response : 50 Hz to 18 kHz (typical)
-
Reference deviation : ±5kHz (at 1kHz modulation)
- Signal-to-noise
ratio
* 60 dB or more (±5kHz deviation at 1 kHz modulation,
A-weighted)
- Indicators
* LCD : Operating channel number/frequency,
audio-output
status, RF-input level
* LED : RF-input
status
- Power requirements : DC 9.0 V
- Dimensions (WxHxD) : 56.6 x 25.5
x 121.0 mm
(2 1/2 x 4 1/16 x 4 7/8
inches)
- Mass : Approx. 150g (5.3 oz)
|
